These pumps can be driven by electric motor or engine. The impellers are of enclosed type and are balanced statically and dynamically. The casing has axial suction and top centre line delivery. Smooth hydraulic passages ensure high efficiency.

Features:

1. Conforming to DIN 24256, ISO 2858
2. Back pull-out design
3. Gland Packed / Mechanical Seal
4. 50 Hz / 60 Hz availability

Specifications:

1. Delivery size up to 200 mm
2. Capacity up to 750 m3 /hr
3. Head up to 150 m
4. Temperature (-) 30 °C to 90 °C

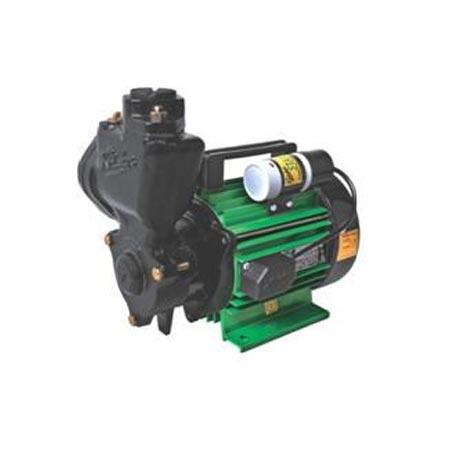

These pumps can withstand voltage fluctuations from 180-255 volts. Thermal overload protector, safeguards the motor from burning. These pumps are light weight and easy to handle. Lightweight pump designed for easy handling and maintenance.

Features:

1. Can withstand wide voltage fluctuations from 180 to 255 Volts
2. Self priming with lift up to 3 metres
3. Thermal Overload Protector (TOP) - prevents motor burning out
4. High quality aluminium extruded motor body with chrome plated shaft
5. TEFC capacitor start and run motor with IP-44 protection and class 'B' insulation
6. Double shielded ball bearings - no need for external lubrication
7. Lightweight pump for easy handling
8. Easy maintenance and spares availability

Technical Specifications:

1. Head : 6 to 28 metres
2. Capacity : 2700 to 450 LPH
3. Power Rating : 0.37 kW (0.50 HP)
4. Voltage Range : 180 to 255 Volts

Material of Construction (Standard Supply):

1. Impeller : Bronze
2. Delivery Casing : Cast Iron
3. Motor Body : Aluminium
4. Mounting Casing : Cast Iron
5. Shaft : Carbon Steel (Chrome Plated

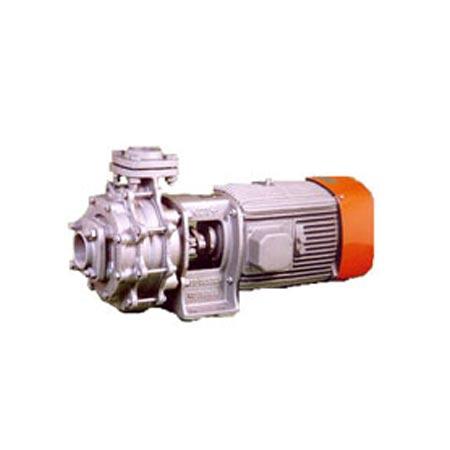

These pumps can withstand voltage fluctuations from 180-240 volts. These have flatter efficiency curve for efficient operation. These are designed to prevent overloading and motor burning and automatic air release during priming.

Features:

1. Flatter efficiency curve for efficient operation
2. Designed to prevent overloading and motor burning
3. Designed for automatic air release during priming
4. Efficiency at par with international pumps
5. Dynamically balanced rotating parts ensuring minimum vibration during running
6. Class ‘B’/ ‘F’ insulation
7. Replaceable wearing parts
8. Models with IP55 protection

Specifications:

1. Capacity up to 20 lps
2. Head up to 110 m
3. Power rating 3.7 to 15 kW (5 to 20 HP)
4. Voltage 300-440 V (Three Phase)

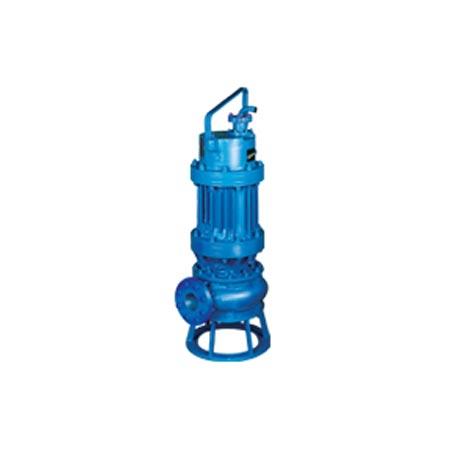

These are single stage, single suction pumps with overhung non-clogging impeller. Pumps can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with pump connector unit and the connector unit is connected to pump support bracket with rubber diaphragm to make it leak proof joint.
Features:

1. Non-clog two vane or single vane enclosed impeller
2. Permissible solid size up to 85 mm
3. Gland packed / Mechanical seal
4. 50 HZ / 60 HZ availability

Specifications:

1. Delivery size from 40 mm to 200 mm
2. Capacity up to 750 m/hr
3. Head up to 48 m
4. Temperature (-) 10°C to 90°C
